*Note: The Brave F7 is only compatible with Betaflight 4.5.1. The Brave F7 will not work with older versions of Betaflight*

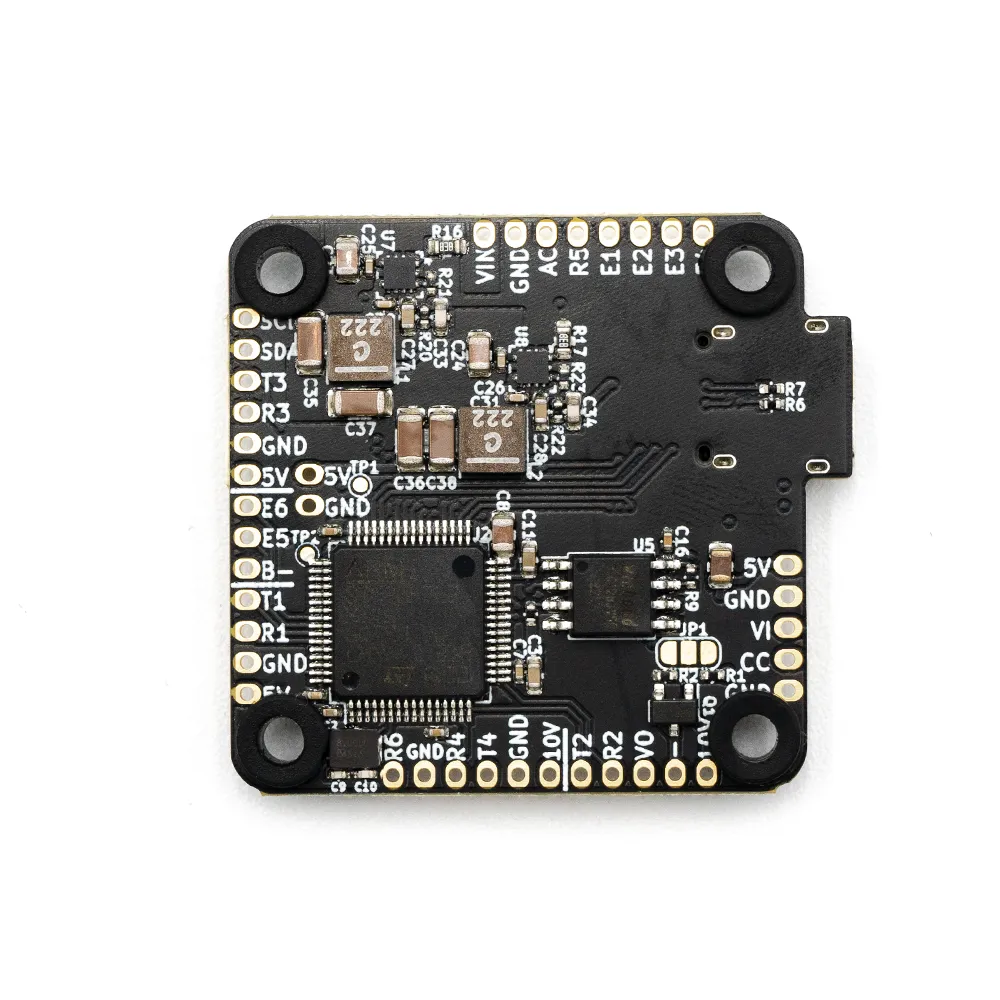

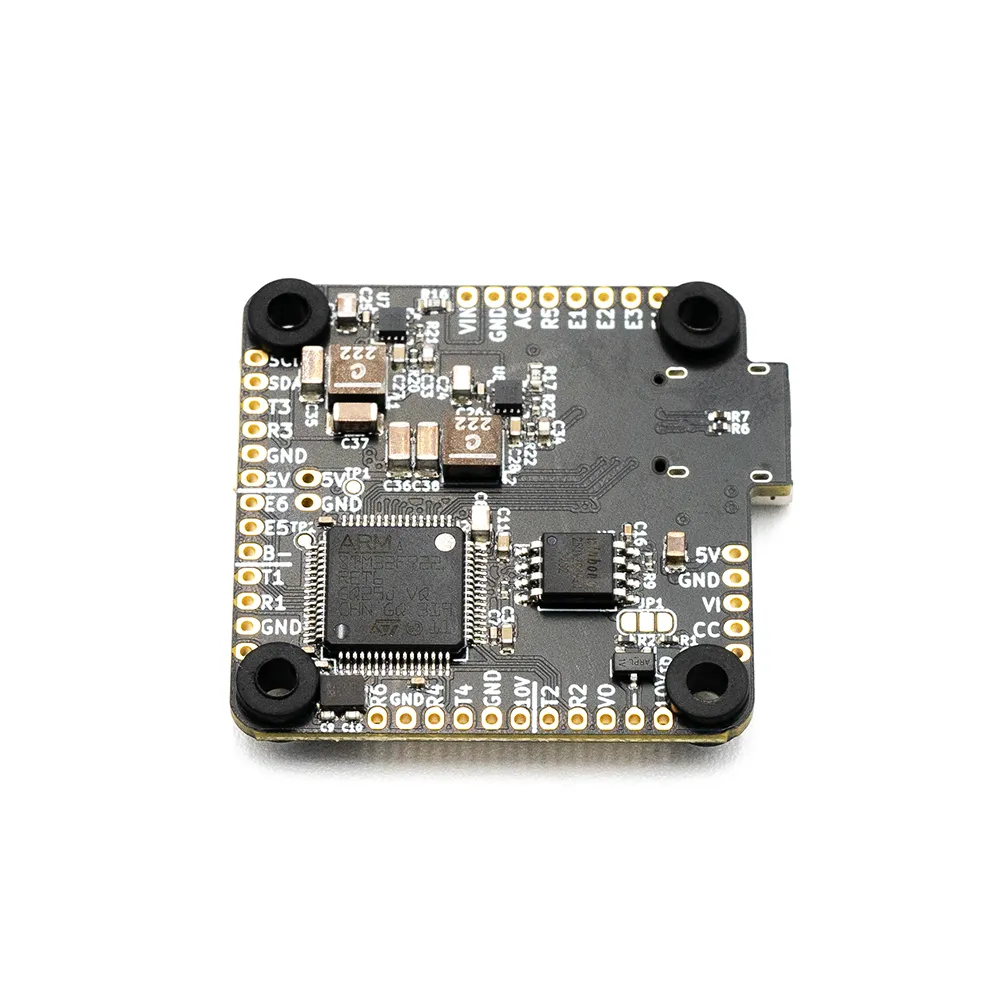

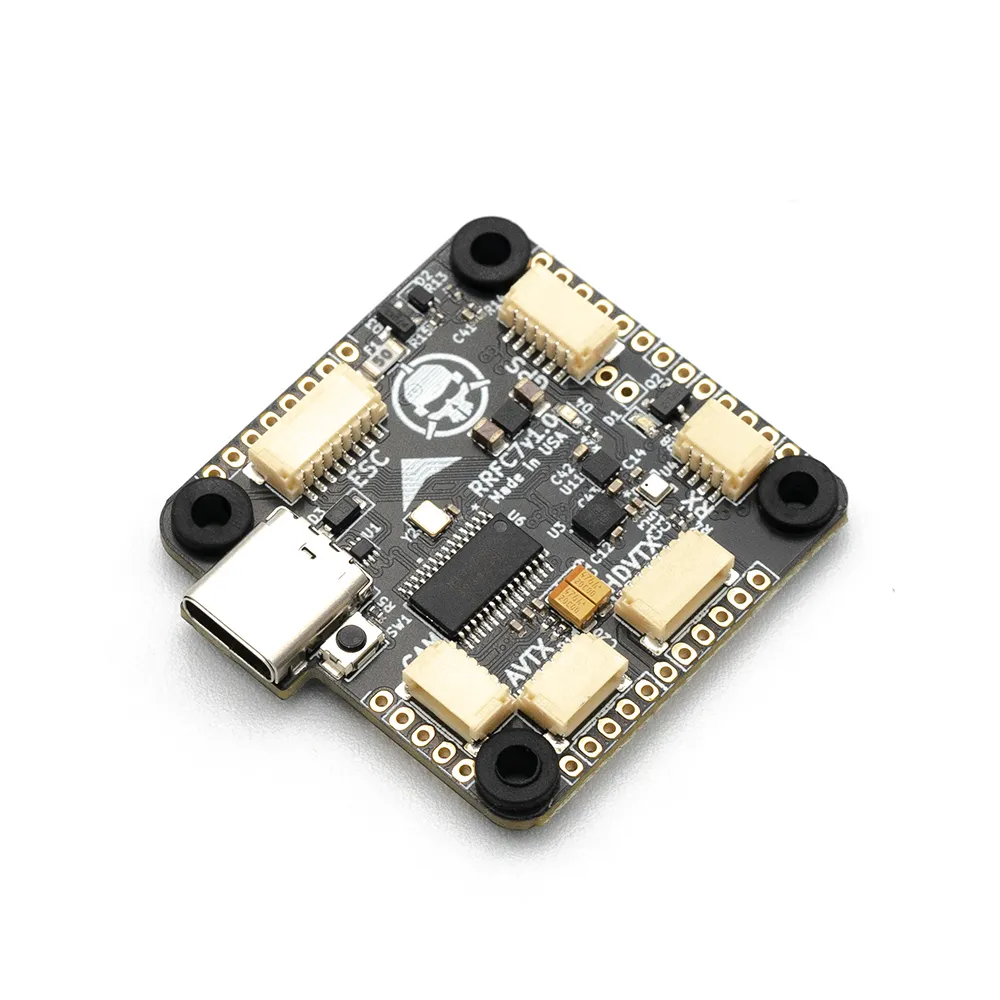

Introducing the Rotor Riot Brave F7 Flight Controller, proudly crafted in the USA and fully NDAA compliant. Built for serious FPV enthusiasts, it offers top-tier reliability and performance.

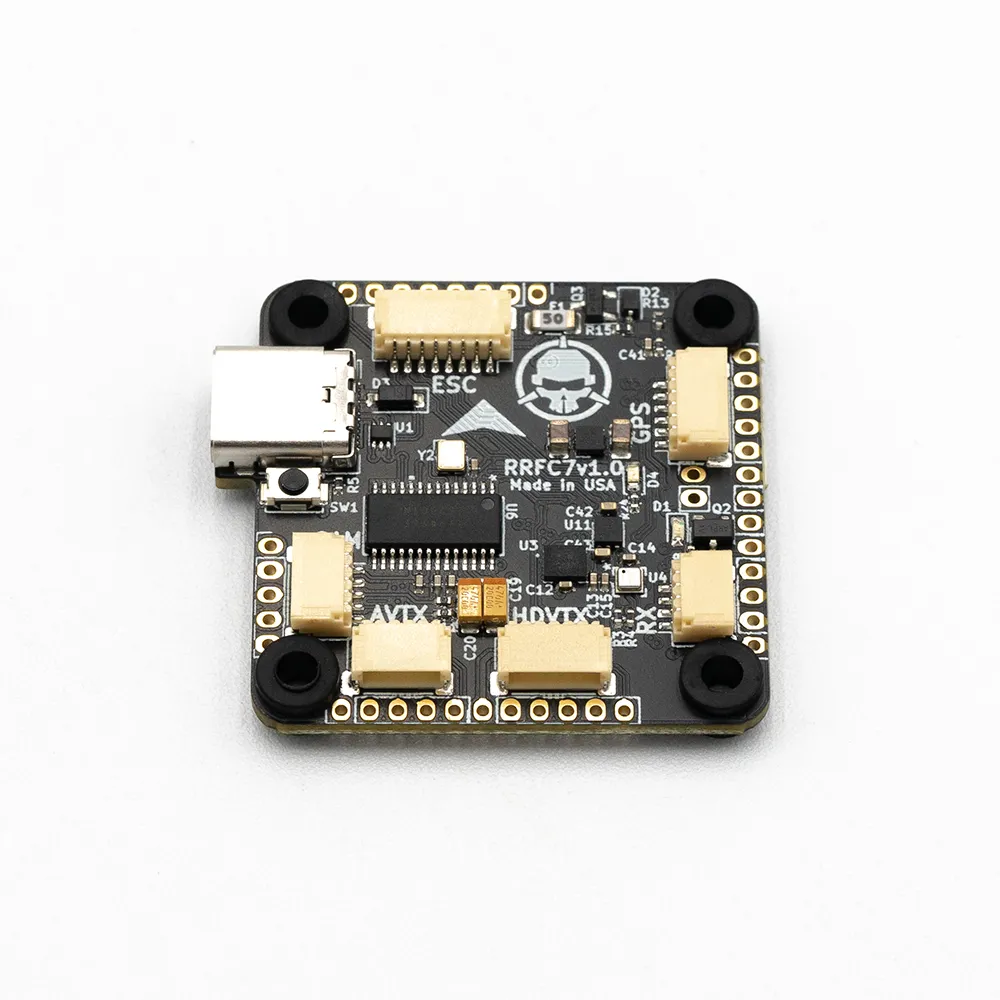

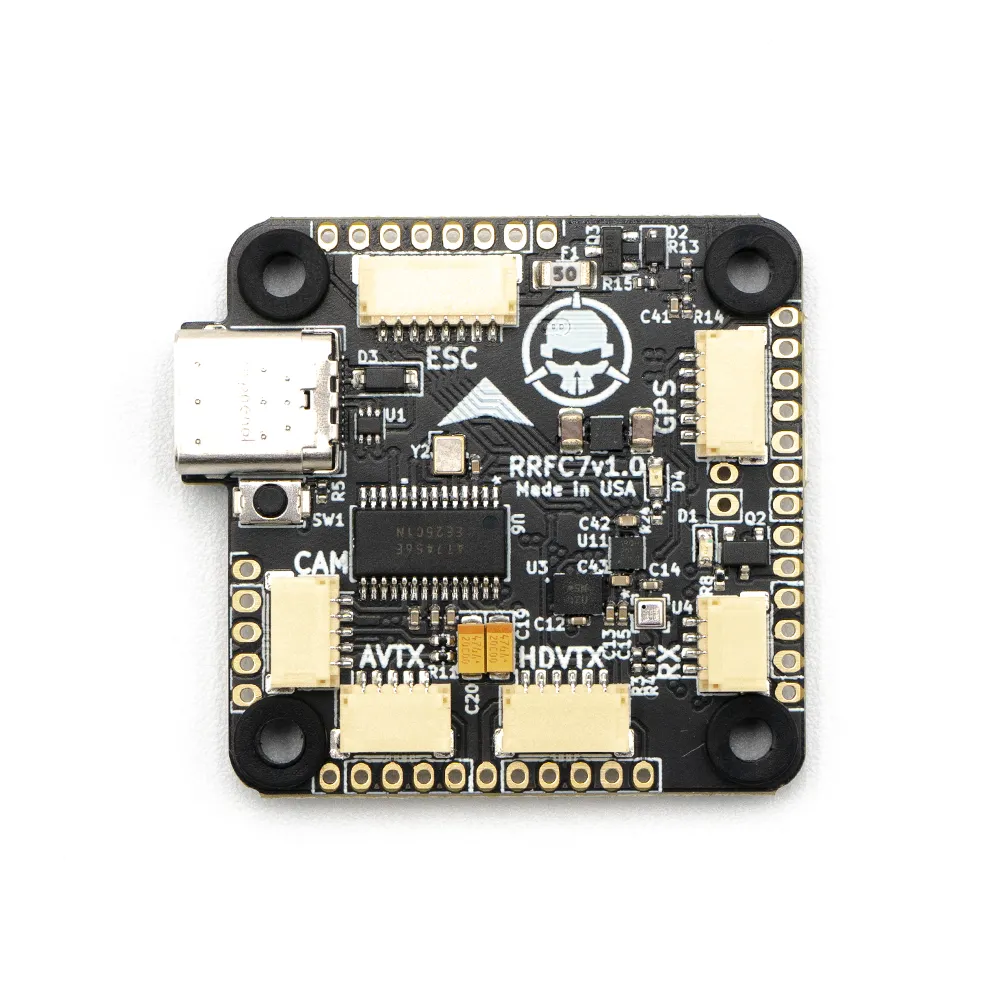

The Brave F7 can be fully built without any soldering. Featuring plug options for GPS, HD VTX, Analog VTX, Camera, RX, and ESC, it ensures seamless integration. It also offers solder pads in front of each plug for those who prefer direct soldering.

Built to perform and endure, the Rotor Riot Brave F7 Flight Controller is your go-to for an outstanding FPV experience.

Specifications

• MCU: STMF722RET6
• Gyro: BMI270
• Barometer: BMP390
• Blackbox Memory: 16Mb
• Input Voltage: 3-8S Lipo
• BEC Output: 10V/2A, 5V/3A
• OSD: AT7456
• UARTS: 6
• Dimensions: 37mm x 37mm
• Mounting Holes: 30mm x 30mm
• Weight: 8g
• Firmware Target: RRIOT_F722 (Betaflight)

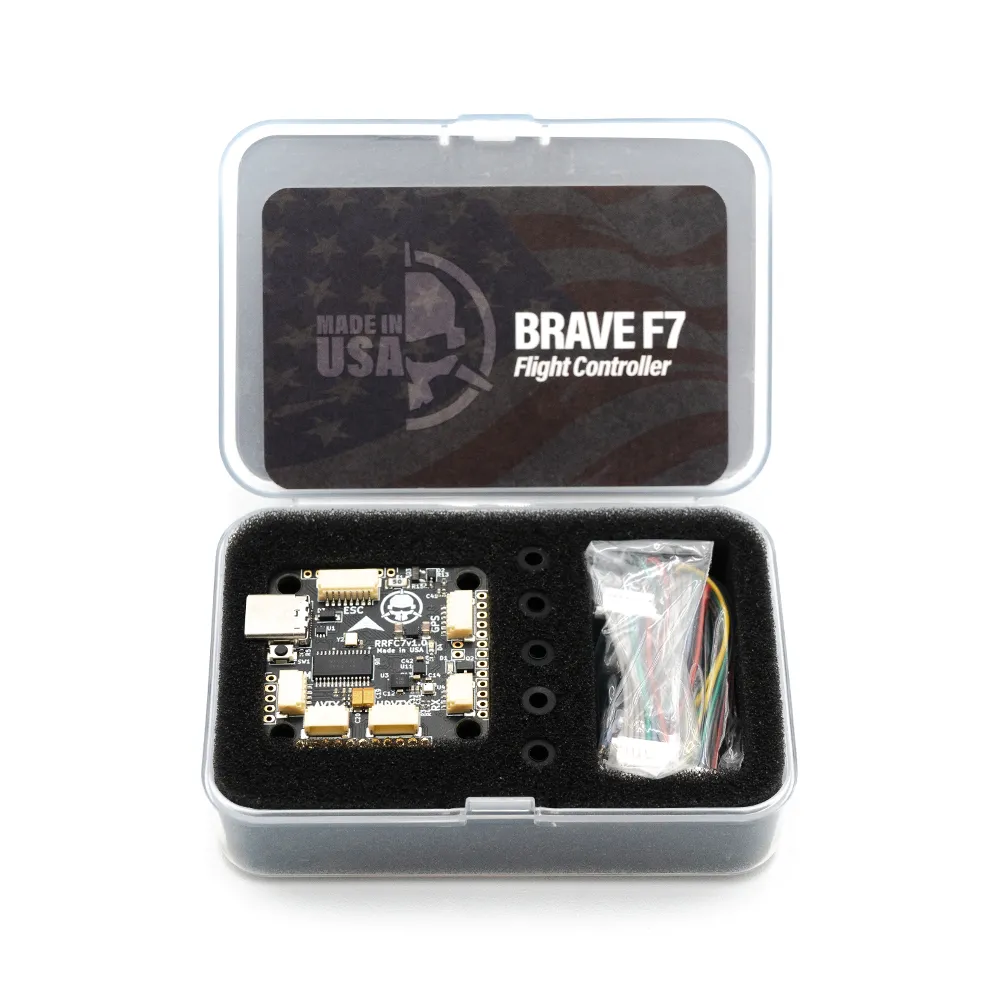

Includes

• 4x FC Vibration Dampeners
• 1x Long FC to ESC Wiring Harness
• 1x Short FC to ESC Wiring Harness
• 1x DJI O3 VTX Wiring Harness

• 1x Avatar HD V2/Moonlight Wiring Harness

Wiring Diagram

To simplify Betaflight setup, the Brave F7 Flight Controller will power peripheral accessories via USB when connected to a computer. However, if you're using a high-power VTX (Walksnail Avatar), you may experience Betaflight connectivity issues. If this happens, disconnect your VTX or connect a battery while you're plugged into a computer.
